316L Product Specification

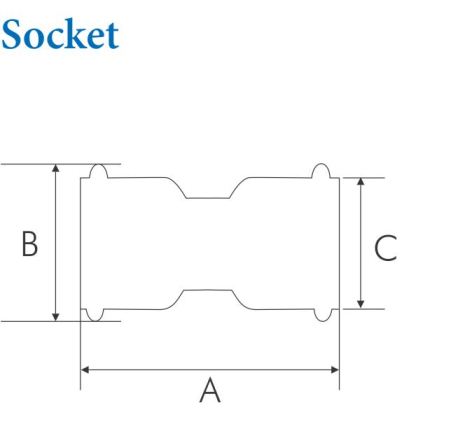

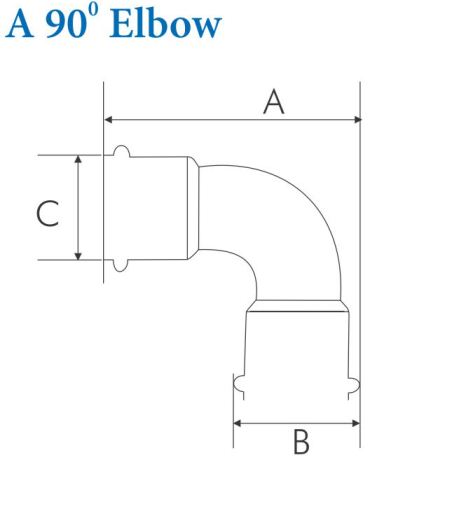

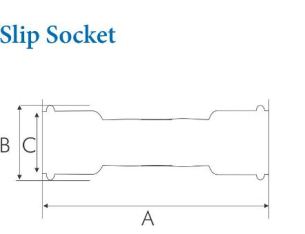

| Size | A | B | C |
|---|---|---|---|
| ½" | 65.00 | 22.00 | 18.00 |
| ¾" | 78.50 | 30.00 | 25.00 |
| 1" | 92.00 | 36.50 | 31.00 |
| 1¼" | 123.00 | 45.50 | 37.50 |
| 1½" | 153.00 | 56.00 | 46.00 |
| 2" | 171.00 | 62.00 | 51.50 |
| 2½" | - | 76.50 | 64.00 |
| 3" | - | 109.50 | 94.00 |
| Size | A | B | C |
|---|---|---|---|
| ½" | 66.50 | 22.00 | 18.00 |
| ¾" | 74.50 | 30.00 | 25.00 |
| 1" | 78.00 | 36.50 | 31.00 |
| 1¼" | 127.00 | 45.50 | 37.50 |
| 1½" | 143.00 | 56.00 | 46.00 |
| 2" | 160.00 | 62.00 | 51.50 |
| 2½" | 157.00 | 76.50 | 64.00 |
| 3" | 170.50 | 109.50 | 94.00 |
| Size | A | B | C |
|---|---|---|---|
| ½" | 36.50 | 22.00 | 18.00 |
| ¾" | 46.50 | 30.00 | 25.00 |
| 1" | 50.00 | 36.50 | 31.00 |
| 1¼" | 71.00 | 45.50 | 37.50 |
| 1½" | 84.00 | 56.00 | 46.00 |
| 2" | 92.00 | 62.00 | 51.50 |
| 2½" | 114.00 | 76.50 | 64.00 |
| 3" | 118.00 | 109.50 | 94.00 |
| Size | A | B | C |
|---|---|---|---|
| ½" | 118.00 | 20.50 | 15.88 |
| ¾" | 132.00 | 25.50 | 22.22 |
| 1" | 150.00 | 32.50 | 28.58 |
| 1¼" | 157.00 | 41.50 | 34.00 |
| 1½" | 160.00 | 47.00 | 42.70 |
| 2" | - | 59.00 | 48.60 |
| 2½" | - | - | 76.10 |
| 3" | - | - | 88.90 |
| Size | A | B | C | D |
|---|---|---|---|---|
| ½" | 57.00 | 20.00 | 18.00 | 25.00 |
| ¾" | 50.00 | 30.00 | 25.00 | 30.00 |
| 1" | 69.00 | 36.50 | 31.00 | 37.00 |
| 1¼" | - | 45.50 | 37.50 | - |
| 1½" | - | 56.00 | 46.00 | - |
| 2" | - | 62.00 | 51.50 | - |
| Size | A | B | C |
|---|---|---|---|
| ½" | 130.00 | 20.00 | 18.00 |
| ¾" | 144.00 | 30.00 | 25.00 |
| 1" | 145.00 | 36.50 | 31.00 |
| 1¼" | - | 45.50 | 37.50 |
| 1½" | - | 56.00 | 46.00 |
| 2" | - | 62.00 | 51.50 |
| Size | A | B | C | D |
|---|---|---|---|---|
| ½" | 61.00 | 20.00 | 18.00 | 26.00 |
| ¾" | 66.00 | 30.00 | 25.00 | 30.50 |
| 1" | 71.00 | 36.50 | 31.00 | 37.00 |
| 1¼" | 94.00 | 45.50 | 37.50 | 47.00 |
| 1½" | 104.00 | 56.00 | 46.00 | 53.00 |
| 2" | 121.00 | 62.00 | 51.50 | 65.00 |
| Size | A | B | C | D |
|---|---|---|---|---|
| ½" | 90.00 | 20.00 | 18.00 | 31.00 |
| ¾" | 106.00 | 30.00 | 25.00 | 32.00 |
| 1" | 118.00 | 36.50 | 31.00 | 36.00 |
| 1¼" | 163.50 | 45.50 | 37.50 | 34.00 |
| 1½" | 187.00 | 56.00 | 46.00 | 38.00 |
| 2" | - | 62.00 | 51.50 | - |
| Size | A | B | C | D |
|---|---|---|---|---|
| ½" | 90.00 | 36.00 | 22.00 | 18.00 |
| ¾" | 106.00 | 42.00 | 30.00 | 25.00 |
| 1" | 117.50 | 45.00 | 36.50 | 31.00 |
| 1¼" | 165.00 | 63.50 | 45.50 | 37.50 |
| 1½" | 189.00 | 71.50 | 56.00 | 46.00 |
| 2" | 212.00 | 79.00 | 62.00 | 51.50 |
| 2½" | 220.00 | 81.00 | 76.50 | 64.00 |
| 3" | 264.50 | 85.00 | 109.50 | 94.00 |
| Size | A | B | C | D |
|---|---|---|---|---|
| ½" | 65.00 | 20.00 | 18.00 | 20.50 |
| ¾" | 71.00 | 30.00 | 25.00 | 25.50 |
| 1" | 74.50 | 36.50 | 31.00 | 32.50 |
| 1¼" | 103.00 | 45.50 | 37.50 | 41.50 |
| 1½" | - | 56.00 | 46.00 | 47.00 |
| 2" | 127.00 | 62.00 | 51.50 | 59.00 |
| 2½" | - | 76.50 | 64.00 | - |
| 3" | - | 109.50 | 94.00 | - |
| Size | A | B | C | D |
|---|---|---|---|---|
| ½" | 90.00 | 22.00 | 18.00 | 41.00 |
| ¾" | 16.00 | 30.00 | 25.00 | 46.00 |
| Size | A | B | C | D |
|---|---|---|---|---|
| ½" | 70.00 | 22.00 | 18.00 | 41.00 |
| ¾" | 82.00 | 30.00 | 25.00 | 46.00 |
Pipes Details
| Size | OD (in MM) | Thickness (in MM) |
|---|---|---|
| ½" | 15.88 | 0.80 |
| ¾" | 22.22 | 1.00 |
| 1" | 28.58 | 1.00 |
| 1¼" | 34.00 | 1.20 |
| 1½" | 42.70 | 1.20 |
| 2" | 48.60 | 1.20 |
| 2½" | 60.50 | 1.50 |
| 3" | 88.90 | 2.00 |
