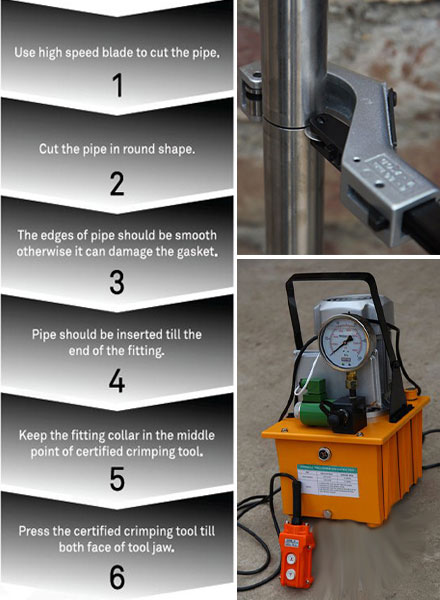

How to install

Use high speed blade to cut the pipe

Cut the pipe in round shape

The edges of pipe should be smooth otherwise it can be damage the Gasket
while inserting in the pipe

Pipe should be inserted till the end of the fitting

Keep the fitting collar in the middle point of die.

Press the die till both face of tool join

Crimping Tool Detail

Crimping range	Cu16-43mm 2
Crimping force	16T
Crimping type	Hexagon crimping
Stroke	20mm

*pipe as pre JIS 3448

S. S 316L Grade Standard	Pipe	Fittings
Standard	JIS-3448	JWWAG-116

Suitable for drinking water as per IS 10500

Material	Percentage(%)	Function
EPDM Rubber	32.00%
Filling Calcium Carbonate	16.00%	Stabilize, avoid D-shaper of rubber
Reinforce (N330, N550)	31.20%	Provide Crack Resistance
Softener (Paraffine Oil No - 300)	15.20%	Avoiding Penetration due to moisture
Accelerator	01.12%	Provide high physical property
Vulcanizer	00.64%	Provide weather resistance and ageing resistance
Other	03.84%	To give shape
Total	100.00%

Material	Colour	Temprature	Function	Usage
Fluoronrubber	Brown	-30°C -170°C	16	Steam high temperature hot water
Filling Calcium Carbonate	Yellow	-40°C -150°C	16	Gas Fuel Oil
